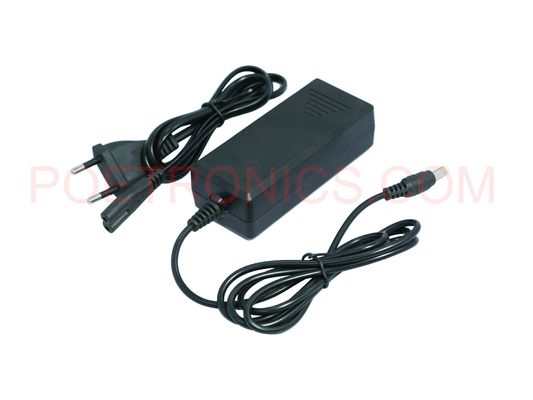

PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter

PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter

    • PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter
    • PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter
    • PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter
    • PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter
    • PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter
  • PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE, FCC, ROHS
    Model Number: PSA1224

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Negotiable
    Packaging Details: white gift box, 100pcs/carton
    Delivery Time: 3-30days
    Payment Terms: T/T, Western Union, PayPal
    Supply Ability: 63500pcs/month
    Contact Now
    Detailed Product Description
    Output Voltage: DC12V Output Frequency: 50-60Hz
    Output Current: 2A Output Power: 24W
    Output Type: Single Input Voltage: AC100V-240V

    12V/24W Switch Power Supply



    Overview

    PSA1224, Switching Mode Power Supply (SMPS) AC/DC adapter, is a low voltage and low power supply that with 12Vdc/24W stabilized power output. It is plastics enclosure capsulated design and equipped with lead wire that comes with individual AC plug, which can be based on different countries’ standard as required, and it also has an output DC connector in size of general standard 5.5x2.1mm or 5.5x2.5mm (Outer Diameter*Inner Diameter) or other size combination standard as required.



    PSA1224 is designed and developed base on IC control solution instead of RCC solution or Triode based circuit scheme, which highly increase the power efficiency, stability, universality and safety, and now its power efficiency goes to more than the fifth level (DoE V) and is also being improved to up to DoE VI. The PCB module of our SMPS are produced through Surface Mounting Technology (SMT) automatic process that greatly ensure our higher capacity and the SMPS qualification ratio.



    With wide range of input voltage AC100-240W and adaptable AC plug, small-size, light-weight, plug and play which make the SMPS flexible for installation project in different industries such as power bank charger, network systems, close circuit television surveillance and other areas where may require.



    Specification



    Item 12V/24W Desktop Switch Mode Power Supply AC/DC Adapter
    Model PSA1224
    Input AC 100-240V, 50-60Hz
    Output DC 12V, 2A
    Power Rated power: 24W, Max power: 30W
    Circuit Module IC (Integrated Circuit) solution instead of Triode Scheme, RCC(Ring Choke Converter) or other solutions
    DC Plug 5.5x2.1mm (default), 5.5x2.5mm or other OEM size are available
    Output Cable 1.2 meter (default), different length of customization are available
    Protection

    SOP(short-circuit protection); OVP(over-voltage protection);

    OLP(over-load protection); OCP(over-circuit protection); OTP(over-temperature protection)

    Energy Efficiency DoE V
    Ambient Environment Operating temperature/humidity: -10℃-70℃; 20%-90% RH
    Storing temperature/humidity: -20℃-85℃; 10%-95% RH
    Safety Approval CE EMC/LVD, FCC, ROHS
    AC Plug

    PSA1224 DC12V 2A 24W Desktop CCTV Camera Switch Mode Power Supply Adapter

    US, EU, AU, UK and other types of AC plug are all available

    Application CCTV Camera, Wirelesss AP/Router, Power Charger/Bank, LED Light, etc.
    Enclosure PC+ABS material, size: 75x48x26mm
    Package White color gift box (implied), 100pcs/carton, carton size: 52x24x30cm
    Warranty 1 year (implied), 2-5 years available based on negotiation
    Note: All material for components and parts of this power supply adapters are Brand new, Environment Friendly, Quality Assured, customers can be rest assured to buy them from us.
