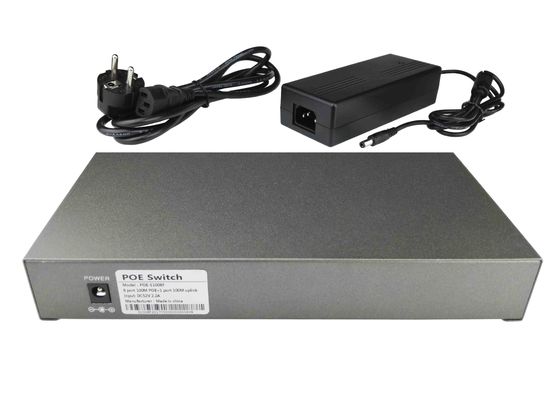

POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)

POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)

    • POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)
    • POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)
    • POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)
    • POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)
    • POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)
  • POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE,FCC,ROHS
    Model Number: POE-S1008F

    Payment & Shipping Terms:

    Minimum Order Quantity: 50units
    Packaging Details: Carton Box
    Delivery Time: 1-30 days
    Payment Terms: Western Union, T/T, L/C, Money Gram, Paypal
    Supply Ability: 8470units/month
    Contact Now
    Detailed Product Description
    Ports: 8 100Mbps PoE + 1 100Mbps Uplink Power Source: 120W External Power Supply
    Ethernet Protocol: IEEE802.3af/at

    POE-S1008F (8FE POE + 1FE Uplink, 65W External Power Source, 1.6G Bandwidth, IEEE802.3af/at)



    Overview:

    POE-S1008F, is universal and the most economical 8 port Fast Ethernet Power over Ethernet switch that we develop and manufacture, it comes with 1 port 10/100Mbps uplink, IEEE802.3af/at compliant and equipped with 120W external power supply, which makes it compatible with most powered device such as IP camera, VoIP phone, Wireless access point, Intelligent access control, etc.



    Every single port output power up to maximum 30W and pass through pins 1,2 "+" and pins 3,6 "-" over qualified Ethernet cable 5 least or those in higher quality such as Cat5e, Cat6, Cat6e, Cat7, etc.which will make sure less power loss in the transmission.



    Finally, it's very popular in the market base on our past experience, which most customers get it applied to network systems built in campus, household, office, hospital and else where require Ethernet power supply source.





    Key Features

    • 8 10/100Mbps POE + 1 10/100Mbps uplink.
    • Compliance with IEEE 802.3af/at.
    • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
    • Auto MDI/MDIX, Store-and-forward, 1.6G bandwidth.
    • Max 30W for a single port, total rated output power 120W.
    • All ports support wire speed switch, jumbo frame transmission.
    • Plug and play, self-adaption, lightning protection.
    • PoE working status can be read and analyzed through LED indicators on front panel.
    • Applied to CCTV IP camera, Wireless AP, Portable device, VoIP phone, etc.

    Specification



    Item 8 Port Unmanaged Fast Ethernet Power over Ethernet Switch
    Model POE-S1008F
    Interface 8 10/100Mbps PoE + 1 10/100Mbps Uplink
    Power Input AC100-240V, 50/60Hz
    Power Output 52V/120W External Power Supply, Max 30W single port
    Data Exchange 10/100Mbps, Store and Forward Switching
    Power/Data Assignment Power: pin 1,2 “+”, pin 3,6 “-”; Data: pin 1,2,3,6
    Bandwidth/MAC 1.6Gbps, 1K
    Ambient Environment Operating temperature: 0~40℃
    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Standards Protocols

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3af/at

    IEEE 802.3x

    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    Safety Approved CE, FCC, ROHS
    Warranty 1-3 years
    Size/Weight

    PoE Size: 225*105*32mm (L*W*H)

    Box Size: 300*175*100mm (L*W*H)

    Net Weight: 1.2kg, Gross Weight: 1.4kg



    Application Diagram

    POE-S1008F(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 120W External power supply (Newly Developed)
