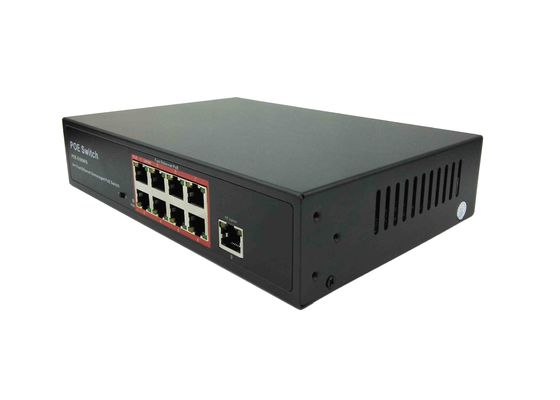

POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)

POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)

    • POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
    • POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
    • POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
    • POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
    • POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
  • POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE,FCC,ROHS
    Model Number: POE-S1008FB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50units
    Packaging Details: Carton Box
    Delivery Time: 1-30 days
    Payment Terms: Western Union, T/T, L/C, Money Gram, Paypal
    Supply Ability: 8260units/month
    Detailed Product Description
    Ports: 8 100Mbps PoE + 1 100Mbps Uplink Power Source: 150W Built-in Power Supply
    Ethernet Protocol: IEEE802.3af/at

    POE-S1008FB (8FE POE + 1FE Uplink, 150W Built-in Power Source, 1.6G Bandwidth, IEEE802.3af/at)



    Overview:

    POE-S1008FB, is 8 port fast Ethernet Power over Ethernet (PoE) Switch, IEEE802.3af/at compliant and equipped with 150W built-in power supply source, which enables it compatible with most powered device such as Wireless Access Point, Network CCTV Camera, Portable Device, Voice over Internet Protocol, etc.



    There has AC100-240V and DC48-57V two different power supply modes for POS-S1008FB, either power input mode is workable as appropriate, and it comes with Default normal sharing system mode and VLAN port isolating mode switchable. All in all, this PoE switch is practical, widely used and popular in the market.



    Key Features

    • 8 port 10/100Mbps POE + 1 port 10/100Mbps Uplink.
    • Compliance with IEEE 802.3af/at, 1.8G bandwidth.
    • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
    • AC100-240V or DC48-58V two different power input modes settable
    • Auto MDI/MDIX, Store-and-forward, lightning protection.
    • Max 30W for a single port, total rated output power 150W.
    • All ports support wire speed switching, jumbo frame transmission.
    • Plug and play, self-adaption, 19’’ rack mountable.
    • PoE working status can be read and analyzed through LED indicators on front panel.
    • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.



    Specification

    Item 8 Port Unmanaged Fast Ethernet Power over Ethernet Switch
    Model POE-S1008FB
    Interface 8 10/100Mbps PoE + 1 10/100Mbps Uplink
    Power Input AC100-240V or DC48-57V (Alternative), 50/60Hz
    Power Output 52V/150W, Max 30W for every single port
    Data Exchange 10/100Mbps, Store and Forward Switching
    Power/Data Assignment Power: pin 1,2 “+”, pin 3,6 “-”; Data: 1,2,3,6
    Bandwidth/MAC 1.8Gbps, 1K
    Ambient Environment Operating temperature: 0~40℃
    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Standards Protocols

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3af/at

    IEEE 802.3x

    IEEE 802.1q VLAN

    System Setting D: Default free communication among all ports, apply to universal data exchange, 100-150m transmission distance.
    V: 1-4 PoE Ports VLAN isolating from each other, effectively restrain cyber storm, ARP virus and other network failure; Apply to wireless AP and other equipment.
    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    Safety Approved CE, FCC, ROHS
    Warranty 1-3 years
    Size/Weight

    PoE Size: 210*140*45mm (L*W*H)

    Box Size: 260*205*65mm (L*W*H)

    Net Weight: 1.3kg, Gross Weight: 1.4 kg






    Application Diagram

    POE-S1008FB(8FE+1FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
