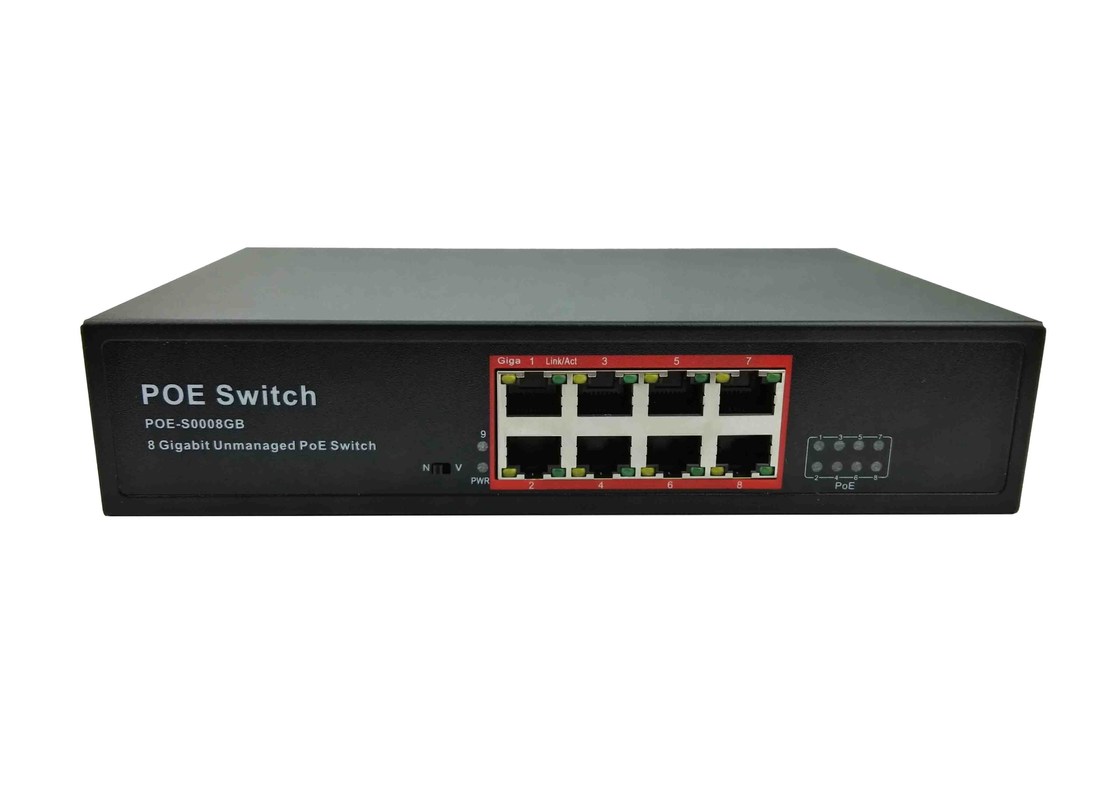

POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)

POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)

    • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)
    • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)
    • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)
    • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)
    • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)
    • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)
  • POE-S0008GB(8GE) 8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in Power Supply (Newly Developped)

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE, RoHS, FCC
    Model Number: POE-S0008GB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50units
    Packaging Details: Carton Box
    Delivery Time: 1-30days
    Payment Terms: T/T, Western Union, Paypal, L/C, etc.
    Supply Ability: 9380
    Detailed Product Description
    Ports: 8 Gigabit PoE Power Source: 150W Built-in Power Supply
    Ethernet Protocol: IEEE802.3af/at

    POE-S0008GB (8 GE POE, 150W Built-in Power Supply, 16G Bandwidth, IEEE802.3af/at)



    Overview

    POE-S0008GB is a 8 port Gigabit unmanaged PoE Switch, conforming to IEEE802.3af/at, with 7 units of Powered Device (PD) such as IP Camera, VoIP Phone, Wireless AP/Routers etc. can be working together at the same time powered by 150W built-in power supply or external power supply with input voltage range of DC48-57V, any of these 8 ports can be used as uplink and any of these ports power output is max. 30W. it’s also 19’’ rack mountable and easy to install and manage.



    Key Features

    • 8 port 10/100/1000Mbps RJ45 POE.
    • Compliance with IEEE 802.3af/at, 16G bandwidth.
    • AC100-240V, 50/60Hz or DC 48~57V two different power supply modes.
    • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
    • Auto MDI/MDIX, Store-and-forward, lightning protection.
    • MAX 30W for a single port, total input power amount 150W.
    • Supports wire speed switch and jumbo frame up to 9KB transmission for all ports.
    • Plug and play, self-adaption, 19’’ rack mountable.
    • PoE working status can be read and troubleshot through corresponding LED indicators.
    • Applied to IP CCTV, wireless AP, VoIP phone, Portable Device, etc.



    Specification



    Item 8 Port Gigabit Unmanaged Power over Ethernet Switch
    Model POE-S0008GB
    Interface 8 GE PoE RJ45 Ports
    Power Input AC100-240V, 50/60Hz or DC 48~57V two in one input modes
    Power Output 52V/150W External Power Supply, Max 30W for every single port
    Data Exchange 10/100/1000Mbps, Store and Forward
    Power/Data Assignment Power: pin 1,2/4,5 “+”, pin 3,6/7,8 “-”; Data: pin 1,2,3,6
    Bandwidth/MAC 16Gbps, 4K
    Ambient Environment Operating temperature: 0~50℃
    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Standards Protocols

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-T

    IEEE 802.3af/at

    IEEE 802.3x

    IEEE 802.1q

    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Gigabit Ethernet 2000Mbps full-duplex

    System Setting D: Default free communication among all ports, apply to universal data exchange, 100-150m transmission distance.
    V: 1-4 PoE Ports VLAN isolating from each other, effectively restrain broadcast and multicast storm, ARP virus and other network failure; Apply to wireless AP and other equipment.
    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

    Safety Approved CE, FCC, ROHS
    Warranty 1-3 years
    Size/Weight

    Enclosure Size: 225*140*45mm (L*W*H)

    Box Size: 262*210*70mm (L*W*H)

    Net Weight: 1.2kg, Gross Weight: 1.4kg

    Packaging Accessory 1x User Manual, 1x AC Cable, 2x Mounting Racks, 7x Philip's head screws



















































































    Application Diagram
