|Place of Origin:||CHINA|
|Certification:||CE, FCC, ROHS|
|Minimum Order Quantity:||500pcs|
|Payment Terms:||T/T, Western Union, PayPal|
|Output Voltage:||DC48V||Output Frequency:||50-60Hz|
|Output Current:||1A||Output Power:||48W|
|Output Type:||Single||Input Voltage:||AC100V-240V|

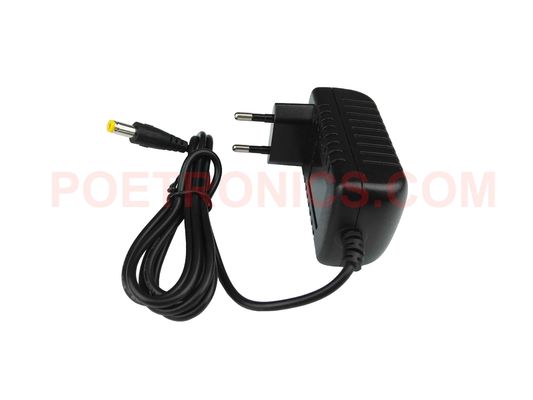

48V/48W Switch Power Supply
PSA4848-W, AC/DC Switch Mode Power Supply (SMPS), it comes with 48Vdc/48W stabilized power output, it’s wall direct mounted or wall direct plug-in way of electric power input access through different AC power plugs based on different countries’ standard. Meanwhile, it is also equipped with a DC connector at size of usual standard (Outer Diameter*Inner Diameter) 5.5x2.1mm and 5.5x2.5mm, or other size combination standard as required for different device.
PSA4848-W is designed and developed over IC control solution instead of RCC solution or Triode based circuit scheme, which will highly increase the power efficiency, stability, universality and safety, now it’s already up to the fifth level power efficiency (DoE V) and are being improved to up to DoE VI. The PCB module of our SMPS are produced through SMT (Surface Mounting Technology) automatic process that will greatly ensure our higher capacity and the SMPS qualification ratio.
This power supply unit is made base on plastic capsulated design and encapsulated through ultrasonic wave or screw locking, which both make the power shell sturdy and durable. Mostly, AC plug it comes with are conform to US, EU, UK, AUS and other standards it may concern and be frequently used in the market.
With wide input voltage range AC100-AC240W and adaptable AC plug, Small-size, Light-weight, Plug and play which make the SMPS flexible for installation project in different industries such Power over Ethernet systems, Wireless Access Point, IP Surveillance, VoIP Phone system and other areas it may require. So, it’s widely used in every field and all industries.
|Item||48V/48W AC/DC Switch Mode Power Supply Adapter|
|Input||AC 100-240V, 50-60Hz|
|Output||DC 48V, 1000mA|
|Power||Rated power: 48W, Max power: 52W|
|Circuit Module||IC (Integrated Circuit) solution instead of Triode Scheme, RCC(Ring Choke Converter) or other solutions|
|DC Plug||5.5x2.1mm (default), 5.5x2.5mm or other OEM size are available|
|Output Cable||1.2 meter (default), different length of customization are available|
SCP(short-circuit protection); OVP(over-voltage protection);
OLP(over-load protection); OCP(over-current protection); OTP(over-temperature protection)
|Energy Efficiency||DoE V|
|Ambient Environment||Operating temperature/humidity: -10℃-70℃; 20%-90% RH|
|Storing temperature/humidity: -20℃-85℃; 10%-95% RH|
|Safety Approval||CE EMC/LVD, FCC, ROHS|
US, EU, AU, UK and other types of AC plug are all available
|Application||CCTV Camera, Wirelesss AP/Router, Power Charger/Bank, LED Light, etc.|
|Enclosure||PC+ABS material, size: 83.4x43.5x31.5mm|
|Package||White color gift box (implied), 100pcs/carton, carton size: 51.5x24x29.5cm|
|Warranty||1 year (implied), 2-5 years available based on negotiation|
|Note:||All material for components and parts of this power supply adapters are Brand new, Environment Friendly, Quality Assured, customers can be rest assured to buy them from us.|
Power Case Diagram:
