| Place of Origin: | CHINA |
| Brand Name: | POETRONICS |
| Certification: | CE,RoHS,FCC |
| Model Number: | PD90W-DRM |
| Minimum Order Quantity: | 10 units |
|---|---|
| Delivery Time: | 1-30days |
| Payment Terms: | T/T |
| Input:: | Standard POE IN | Output:: | 12V/16V/24V/48V DC Switchable, Max 90W |
|---|---|---|---|
| Protocol: | IEEE802.3af/at/PoE++/bt | Data Speed: | 10/100/1000Mbps |
| Power/Data Assignment: | Power Pin 1,2,4,5"+", Pin 3,6,7,8"-",Data Pin 1,2,3,4,5,6,7,8 | Type:: | Industrial PoE Splitter |

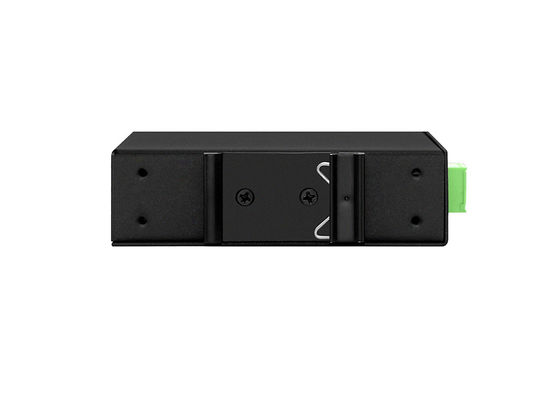

90W Industrial PoE Power over Ethernet splitter
PD90W-DRM, is a 90W industrial PoE Splitter, it's DIN rail mountable, and can be working at harsh ambient environment which meet the requirements of various industrial fields, it also has stronger protection performance and hardware configuration than usual injectors. No matter where at harsh high-density network applications such as factories, mines, industrial automation, transportation, infrastructure, ports and farms, etc. there is no problem for PD90W-DRM to be installed and applied.
In Power over Ethernet operating condition, power and data are transmitted over the network cable simultaneously. The PoE Splitter PD90W-DRM comes with 12V/16V/24V/48Vdc Switchable output voltage and maximum 90 Watt stabilized output power and pass through pins 1,2,4,5 and 3,6,7,8 over the Ethernet cable, meanwhile network data transmits at the maximum speed of 1000Mbps through pins 1, 2, 3 and 6 over this PoE splitter.
Specification
| Item | Industrial Grade PoE Splitter |
| Model | PD90W-DRM (metal case) |
| Input Voltage/Frequency | Standard PoE IN |
| Output Voltage/Current | DC 12V/16V/24V/48V switchable, MAX 90W |
| Interface Port | PoE RJ45 Input Port, 10/100/1000Mbps(Gigabit) |
|
Ethernet Data RJ45 Output Port, 10/100/1000Mbps(Gigabit) |
|
|
Terminal DC Power Output Port |
|
| Power/Data Assignment | Power: pin 1,2,4,5“+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,4,5,6,7,8 |
| Data Exchange | 10/100/1000Mbps |
| Ambient Environment | Operating temperature: -10~65℃ |
| Storing temperature: -40~70℃ | |
| Operating Humidity: 10%~90% RH, no condensation | |
| Storing Humidity: 5%~90% RH, no condensation | |
| Network Medium |
10Base-T: Category 3,4,5(Cat3,4,5) and above UTP/STP(≤100m) 100Base-TX: Category 5,5e(Cat5,5e) and above UTP/STP(≤100m) 1000Base-T: Category 5e,6(Cat5e,6) and above UTP/STP(≤90m) |
| Special Feature |
Din Rail Mounting, Output voltage is switchable as required Metal enclosure, natural heat dissipation Under-voltage, over-voltage, over-current and short-circuit protection Isolative integrated circuit scheme System Reliability: MTBF>=30k hours PoE++/IEEE802.3bt, IEEE802.3af/at downward compatible Lighting Protection: 3KV 8/20us; 3KV ESD protection Comply to CE, FCC, RoHS |
| Warranty | one year |
| Dimension/Weight | Product Size: 100mm×86mm×30mm; N.W.: 0.35KG, G.W.: 0.45KG |
