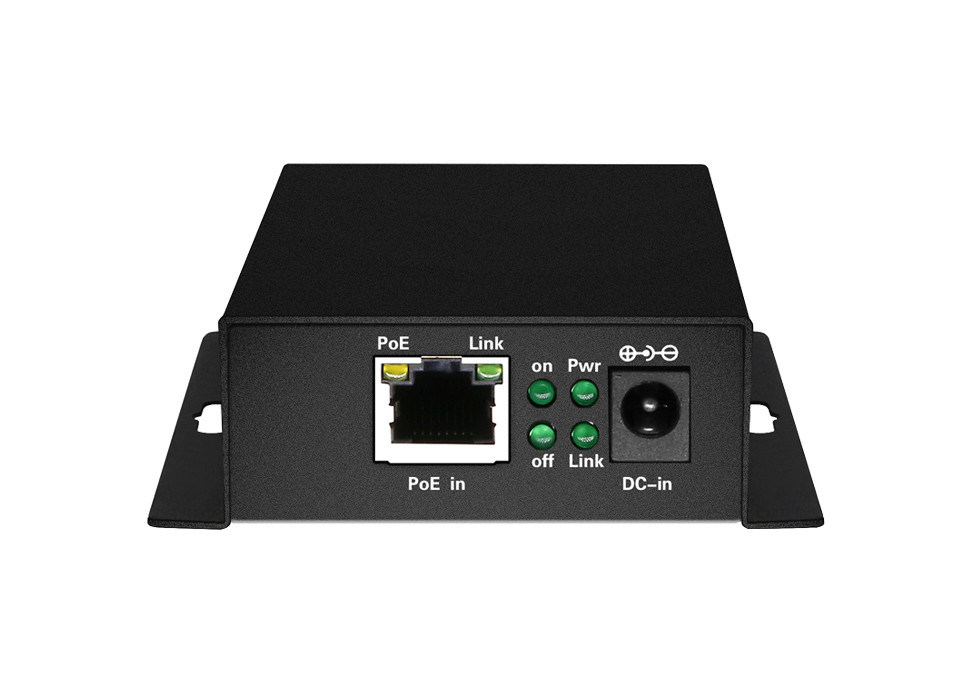

POE-EX101PRO POE Extender max 90W IEEE802.3at,at,bt compliant 150~250 meters extension range

POE-EX101PRO POE Extender max 90W IEEE802.3at,at,bt compliant 150~250 meters extension range

    • POE-EX101PRO POE Extender max 90W IEEE802.3at,at,bt compliant 150~250 meters extension range
    • POE-EX101PRO POE Extender max 90W IEEE802.3at,at,bt compliant 150~250 meters extension range
  • POE-EX101PRO POE Extender max 90W IEEE802.3at,at,bt compliant 150~250 meters extension range

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE, FCC, ROHS
    Model Number: POE-EX101PRO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: 50pcs/carton
    Delivery Time: 2-30days
    Payment Terms: T/T, Western Union, PayPal
    Supply Ability: 200,000/month
    Contact Now
    Detailed Product Description
    Protocol Standard(PSE Port):: IEEE802.3 Af/at/PoE++/BT Power Input: 52Vdc Max 2A, As One Port PoE Switch/Injector
    PoE Output 1: IEEE802.3af/at, Max 30W Power Pin Available: 1,2,4,5"+"; 3,6,7,8"-"
    Extension Range: 150~250 Meters

    IEEE 802.3af/at/PoE++/BT 10/100/1000Mbps 150~250m Extension Range PoE Extender



    POE-EX101PRO is a PoE extender that dedicated to extend the PoE transmission distance to 150 meters or more for power and data, it is a great solution to extend the Ethernet system network range over least 100 meters at a very cost-effective way. The PoE extender PoE-EX101PRO is an advanced version of POE-EX101 as it has two PoE output including IEEE802.3af/at/PoE++/bt compliant max. 90W output and IEEE802.3af/at max. 30W output. It usually apply to most network device such as Wireless AP, IP Camera, VoIP, etc. which delivering power and data up to 250 meters while compliance with IEEE802.3af/at standards, and it’s Plug and Play works without additional power supply as it’s drove by the PoE itself.


    The PoE Injector delivers PoE power over the first 150 meters to the POE-EX101PRO over Cat5 or better UTP cable, and then the POE-EX101PRO forwards the Ethernet data and remaining POE power to the PoE IP camera. It does not require an external power supply and can be installed easily by just plug and play, which means the operator does not need to configure to POE-EX101PROIt is a newly designed and simple device which extends both the reach of Ethernet Data and Power over Ethernet over the standard 150m~250m (492ft~820ft ) Cat5/5e/6 or better UTP cable.


    POE-EX101PRO is on the other hand more than just an PoE extender, it still perform as a network extender with 12Vdc/0.5A extra power supply source to drive, and perform as a PoE Switch or PoE Mid-Span injector which can work with two PoE powered device compliance with IEEE802.3af/at(max. 30W) and IEEE802.3af/at/PoE++/bt(max. 90W) seperately.




    - Compliance with IEEE802.3af/at/PoE+/bt Power over Ethernet

    - Extension range 150~250 meters

    - Output power level up to IEEE802.3BT(max. 90W) standard

    - Compatible power supply pin 1,2/+ 3,6/- or 4,5/+ 7,8/-

    - Delivers both Ethernet data and PoE power to remote devices

    - Automatically detects and protects PoE equipment from being damaged by incorrect installation

    - Multiple units, daisy-chain installation support

    - No external power cable required for installation

    - PnP (Plug and Play), Drove by PoE itself without additional power supply


    Technical Specs


    Model POE-EX101PRO
    Ports PoE/LAN

    PoE/LAN In: 10/100/1000Mbps RJ45*1

    PoE/LAN Output: 10/100/1000Mbps RJ45*2

    Power Input DC Socket: 5.5x2.1mm/5.5x2.5mm (Outer Diameter * Inner Diameter)
    PoE In

    IEEE802.3af/at/PoE++/BT, Max. 90W

    Pins 1,2(+) 3,6(-); 4,5(+) 7,8(-); 1,2,3,6(+) 4,5,7,8(-) compatible

    PoE Out

    1 Port IEEE802.3AF/AT/POE++/BT, Max 90W

    1 Port IEEE802.3AF/AT, Max 30W

    Support simultaneous operation for both PoE output

    DC Power Input

    1. Default: No power input required

    2. DC9-57V: 12Vdc Max 0.5A, as Network Extender

    3. DC37-57V: 52Vdc Max 2A, as one port PoE Switch or PoE Extender

    Power Consumption Standby Power Consumption:≤3W; Full-load Power Consumption:≤100W
    Transmission Mode Store and forward, Full wire-speed, 10/100/1000Mbps
    EXT Mode Range Extension: 250 metres ultra-distance transmission mode at 10Mbps data speed
    Bandwidth/MAC 12G, 2K
    Packet Forwarding/Buffer 7.2Mpps, 2.5M
    Standard Protocol IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at/PoE++/BT
    Ambient Environment Operating/Storing Temperature: -10℃~55℃; -40℃~75℃
    Operating/Storing Humidity: 5%~90% RH, 5%~95% RH, both are no Condensing
    Data Rate

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbps half-duplex, 200Mbps full-duplex

    Gigabit Ethernet 1000Mbps half-duplex, 2000Mbps full-duplex

    Network Medium

    10Base-T: 2 Pair Category 3,4,5(Cat3,4,5) or above UTP/STP (250 metres)

    100Base-TX: 2 Pair Category 5(Cat5) or above UTP/STP (150 metres)

    1000Base-TX: 2 Pair Category 6(Cat6) or above UTP/STP (150 metres)

    LED Indicator

    Pwr: Power LED Indicator

    Link: Green LED Light On=10/100Mbps operating status

    Port PoE: Orange LED, Port Link: Green LED

    ON/OFF LED: EXT range extension feature

    Safety/Protection CE, RoHS, FCC; 3KV 8/20us Lightning Protection; IP Rating 30
    Warranty One Year
    Size/Weight Product Size: 85*70*25mm (L*W*H); N.W.: 0.15kg, G.W.: 0.20kg
