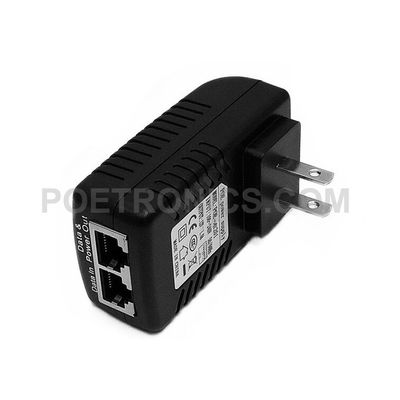

15VDC,1A POE Switching Power Adapter & Supply

15VDC,1A POE Switching Power Adapter & Supply

    • 15VDC,1A POE Switching Power Adapter & Supply
    • 15VDC,1A POE Switching Power Adapter & Supply
    • 15VDC,1A POE Switching Power Adapter & Supply
    • 15VDC,1A POE Switching Power Adapter & Supply
  • 15VDC,1A POE Switching Power Adapter & Supply

    Product Details:

    Place of Origin: CHINA
    Model Number: POE-A1501

    Payment & Shipping Terms:

    Delivery Time: 3-30days
    Contact Now
    Detailed Product Description
    Output Voltage: 15V Output Frequency: 50-60Hz
    Output Current: 1A Output Power: 1 - 50W
    Output Type: Single Input Voltage: AC 100-240V
    Transmission Rate:: 10M/100Mbps Protocol Standard:: Non-IEEE802.3

    POE Switching Power Supply & Adapter


    Why choosing 15V POE power adapter?

    Most powered device require 12V power supply, the voltage of the supplying power will be drop at a distance of transmission via network cable. Usually, the voltage will drop to lower than 12V after over 10 meters delivering via network cable, which is just satisfied for AP working regularly. When the POE is 12V, the AP will be not in regular working due to under-voltage, on the contrary, the over-voltage will hit the device. So, taking all into account, 15V will be more appropriated especially for the powered device connected over 10meters far away.


    General Specification:


    Input:AC100-240V, 50-60Hz

    Output:DC15V, 1A; 15W


    Key Feature:

    1. Strong resistance of interference, high reliability

    2. Low DC ripple, high efficiency, low standby power consumption, lower calorific value, natural cooling, long service life

    3. Broad input voltage range (100-240VAC), conform to multinational use standard.

    4. Excellent insulating performance, higher dielectric intensity

    5. Good load capacity, constant current & constant voltage, wider adaptive range, over-voltage protection for input and output, short-cut protection, over-current protection.

    6. The shell is made of flame resisted engineering plastic, which greatly improve the equipment using safety

    7. Operating Distance: Max.100 meters (CAT 5 or better cable). It specifically depends on the quality of network cable, supply voltage and adaptability of power device for voltage. The higher quality of network cable, the voltage drop will be less, and the effective power distance will be further accordingly.



    Direct Feeding=Plug and supplying power, supplying power directly without advanced detection for Power Device (PD)



    Power Output:


    Min. Load

    Max. Load

    Peak Current

    Output Power

    15 VDC

    0 A

    1.0 A

    1.0-1.2 A

    15 W


    Combined Load/Line Regulation:


    Min. No-Load


    Max. No-Load


    Line Regulation

    Load Regulation

    15 VDC

    15.0 V

    15.85 V




    Technical Specification

    Input Voltage/Frequency

    AC100-240V; 50-60Hz

    Input Adjusting Range

    AC90-264V; 47Hz~63Hz

    Output Voltage/Current

    15VDC, 1A; 15W

    Output Voltage Regulation


    Load Regulation


    DC Output Broadband Noise Voltage

    3.4kHz~150kHz ≤50mv

    Network Port Mark

    Data&Power Out=Power pin (4/5 “+” & 7/8 “-”) + Data pin (12/36)

    Data In=Data pin (12/36)

    Transmission Rate


    LED Power Indicator

    Green or Blue Color;

    Indicator On: Power in normal working condition;

    Indicator Off: Power supply failure;

    Note: When the power in normal working condition, after connecting network cable, the indicator off means it’s in over-load protection or shortcut status, it should be the requiring power of powered device is too high, network cable is shortcut or the powered device is broken.

    System Reliability


    Environmental Requirement

    1. Operating Temperature: -10℃~50℃

    2. Relative Humidity: 5%~90%RH

    3. Operating and Storing Place: Ventilation and heat dissipation, Clean, No conductive dust, No corrosive gas

    4. Place of No dangerous of explosion

    Safety Assurance

    Conducted Emission(CE) and Radiated Emission(RE) compliant with EN60950, CE, FCC standard


    83.5mm×47mm×53.7mm;  85g

    Power Plug Specs

    EU/US/UK/AU Plug are available

    Lightning Protection

    AC Input can stand 5 times positive & negative 5KV, 8/20uS instantaneous current wave, lasting 1 minutes each time. The lightning protection circuit of the power adapter have invalidation alarming function and protective components like glass protective tube


    This is ordinary switching power supply, great protective performance, superior stability and adaptability connecting with power device, its scope of application include security surveillance, wireless access point, electrical machine, communication equipment, health care products and those POE supported equipment.


    One year
