| Place of Origin: | CHINA |
| Model Number: | POE-IJ804M |
| Delivery Time: | 3-30days |
|---|
| Output Power: | 51 - 100W | Output Type: | Quad |
|---|---|---|---|
| Input Voltage: | DC 9-48V |

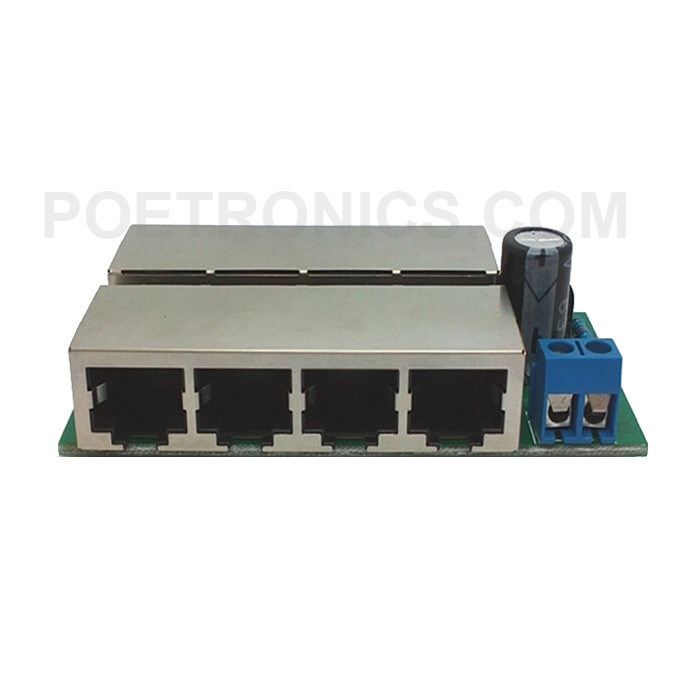

4 Port Passive POE Injector, POE Power Adapter, POE Power Supply Module
POE-IJ804M
Technical Specification
|
Item |
4 Port Passive POE power supply module |
|
Model |
POE-IJ804M |
|
Product specification |
1×Bare PCB board; |
|
2×4 RJ45 Network Interface; |
|
|
1×DC Female Connector; |
|
|
1×Cable connector; |
|
|
1×Capacitance; |
|
|
1×Resistance; |
|
|
1×Indicator; |
|
|
1×Double Sided PCB; |
|
|
4 Pairs one-to-one Data-in and Data & Power Out; |
|
|
Power Supply line 4/5 “+”; 7/8 “-”; Data line 12/36 |
|
|
It can powering and transferring data for 4 pcs of device at the same time; |
|
|
Input voltage range |
9-48V |
|
Input current range |
4-8A |
|
Power connection |
1. DC Male connector 5.5×2.1mm; 2. Screwing DC connecting terminal. |
|
Packing |
PC Bubble pack |
|
Input DC power: |
DC: 9-48V/5A |
|
DC Connector |
Inner Positive “+” 2.1mm; Outer Negative “-” 5.5mm |
|
Network Power Port |
Pin 4/5 positive, Pin 7/8 negative |
|
Product Application |
Engineer centralized wireless bridge, wireless AP, security surveillance, network camera centralized power supply, etc. |
