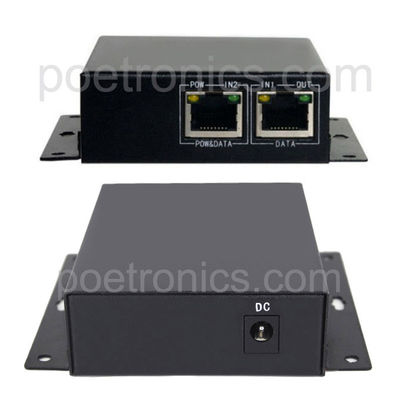

POE-SL803 30W Gibagit IEEE802.3af/at Compliant POE Splitter for IP Camera

POE-SL803 30W Gibagit IEEE802.3af/at Compliant POE Splitter for IP Camera

    • POE-SL803 30W Gibagit IEEE802.3af/at Compliant POE Splitter for IP Camera
    • POE-SL803 30W Gibagit IEEE802.3af/at Compliant POE Splitter for IP Camera
  • POE-SL803 30W Gibagit IEEE802.3af/at Compliant POE Splitter for IP Camera

    Product Details:

    Place of Origin: CHINA
    Certification: CE, FCC, ROHS
    Model Number: POE-SL803

    Payment & Shipping Terms:

    Delivery Time: 2-30days
    Detailed Product Description
    Output Power: 1 - 50W Output Type: Single
    Type: DC/DC Converters Input Voltage:: DC36-57V
    Output Voltage:: DC12V/24V

    30W Gigabit Power Over Ethernet Splitter_IEEE802.3af/at

    POE-SL803

    POE-SL803, 30W PoE splitter, it is an economical and practical PoE remote power equipment, with excellent performance and developed in accordance with the IEEE802.3af standard. Connect PoE injector or at standard POE switch by Cat5 cables. POE-SL803 Model output two tranches voltage of 12V with the power supply equipment (30W PoE injector). It helps to expand home networks, office networks, and is not restricted by layout of power line.



    Feature:

    30W POE Splitter

    1. Support the IEEE 802.3af/at the Power over Ethernet standard.

    2. Support 10/100/1000Mbps data transmission.

    3. PD receiving and supports a variety of voltage of 12V-48V transfer, user-friendly UPS DC power supply.

    4. Provide 12V voltage to adapt to a variety of small network equipment.

    5. Circuit isolation protection, effective protection of electrical equipment.

    6. High quality design, guarantees the stability and reliability of the equipment in work.



    Specification

    POE Parameter

    Port Max. 25.5W (IEEE 802.3at)

    Input voltage: DC36-57V;   Output voltage: DC12

    Connect Port

    1. Input: an input RJ45 interface

    2. Output: an output RJ45 connector and a DC output interface

    3. Data transfer rate: 10/100Mbps

    4. The maximum transmission distance: 100 meters

    Network Standard

    IEEE802.3i 10 BASE-T

    IEEE802.3i 100 BASE-TX

    IEEE802.3x flow control

    IEEE802.3af  Power Over Ethernet

    LED Indicator

    PoE input power indicator

    DC output power indicator

    Interface Protection

    Meet the IEC61000-4-2(ESD)±15KV(air), ± 8KV(contact) requires

    And able to withstand 8/20us 24A (12A) energy.

    Certificate

    CE, FCC, ROHS

    Working Term

    0°C ~ 50°C (32°F ~ 122°F)

    Storing Term

    -10°C ~ 70°C (14°F ~ 158°F)

    Operating Humidity

    20% ~ 85%, Non-condensing

    Dimension

    94mm×73mm×24mm (L×W×H)

    Weight

    0.35kg

    Warranty

    One year
