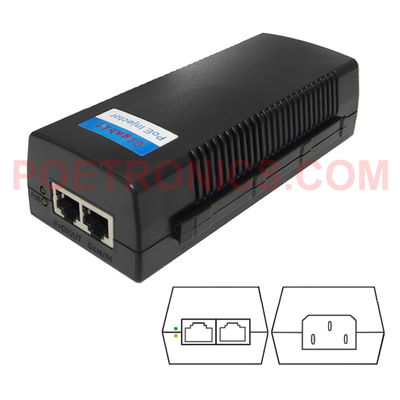

POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS

POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS

    • POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS
    • POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS
    • POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS
  • POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE, FCC, ROHS
    Model Number: POE-PSE01M

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable POE Price
    Packaging Details: 50pcs/carton
    Delivery Time: 2-30days
    Payment Terms: T/T, Western Union, PayPal
    Supply Ability: 200,000pcs/month
    Detailed Product Description
    Size: 145x60x39mm Weight: 0.5KG
    Input Voltage: AC100-240V Output Voltage: DC48V
    Output Frequency: 50-60Hz Output Current: 0.5A
    Output Power: 1 - 50W Output Type: Single
    Type: AC/DC PoE Injector

    10/100Mbps 24W Passive Power over Ethernet Injector

    POE-PSE01M

    POE-PSE01M, Single-port Power over Ethernet equipment, as an injector, is suitable for indoor using and 100V- 240VAC input voltage. The cable connecting the injector and the network terminal equipment require by Cat5 cable or higher. The device can be connected to Ethernet devices, such as Routers, Switches, Wireless AP, IP telephone, Industrial network terminals, Network cameras and other POE powered applications. Which help to provide high efficient solutions that powering the device installed in remote place at a higher system reliability just through Ethernet cable and greatly simplifying the whole installation.



    Feature

    1. Power Protection:

     - Input: Over voltage/Under-voltage protection

     - Output: Over voltage/Over current protection for each output channel

    2. System Reliability: MTBF>50k hours

    3. Conducted interference (CE) and Radiated interference (RE), meets EN55022, CLASS B standard

    4. Lightning Protection:

     - AC Input terminal: It can stand 2KV for differential mode and 6KV for common mode, 8/20uS instantaneous current wave, positive and negative 5 times each, 1 mins interval each time;

     - PSE: It can stand 2KV for differential mode and 6KV for common mode, 10/700uS instantaneous current wave, positive and negative 5 times each, 1 mins interval each time;

    Power lightning protective circuit has a failure alarm function and security protecting component



    Specification

    Model

    POE-PSE01M

    Input Voltage

    100-240VAC

    Output Voltage

    48VDC

    Network Standard

    IEEE802.3i 10 BASE-T

    IEEE802.3i 100 BASE-TX

    IEEE802.3x flow control

    IEEE802.3af /IEEE802.3at

    PoE power

    30W each single port

    Wiring:  Power provided over pin 1,2,3,6

    Cable: UTP cat.5 or higher

    Internal power adapter

    Processing types

    Store-and forward

    Half-duplex back pressure and IEEE802.3X full-duplex flow control

    Power pin

    1/2 “+”; 3/6 “-”

    Data Rate

    10/100Mbps

     Installation and

    Plug and play installation

    Management

    Midspan automatically detect all devices support for PoE

    LED indicator

    System: Power, PoE max. power

    Per port: Link, Speed, PoE active, PoE error

    Working Temperature

    0°C ~ 40°C  (32°F~104°F)

    Storage Temperature

    -10°C ~ 70°C (14°F~158°F)

    Operating Humidity

    20% ~ 85%

    LED indicator

    Link, Speed, PoE active, PoE error, Data in Port LED not bright, just for decoration

    Certificate

    CE, FCC, RoHS

    Warranty

    One year

    Package

    PoE Injector, Power Cord, User Guide

    Packaging Details

    White box/Color box, 50pcs/CTN,  G.W: 18.8KG/CTN,

    Dimension: 695mm×380mm×285mm/CTN



    Installation Diagram

    POE-PSE01M 10/100Mbps 24W Passive POE Injector Power pin 4,5+ 7,8- by POETRONICS
