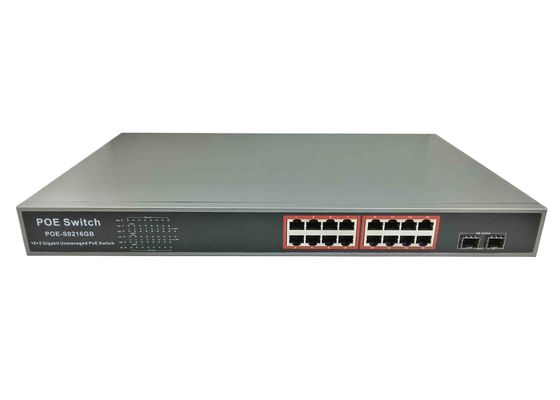

POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)

POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)

    • POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
  • POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE, FCC, ROHS
    Model Number: POE-S0216GB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50units
    Packaging Details: Carton Box
    Delivery Time: 1-30 days
    Payment Terms: T/T, L/C, Paypal, Western Union
    Supply Ability: 6810units/month
    Detailed Product Description
    Ports: 16 Gigabit PoE + 2 Gigabit SFP Uplink Power Source: 350W Built-in Power Supply
    Ethernet Protocol: IEEE802.3af/at

    POE-S0216GB (16GE POE + 2GE SFP Uplink, 350W Built-in Power Source, 52G Bandwidth, IEEE802.3af/at)



    Overview

    POE-S0216GB is 16 ports Gigabit unmanaged Power over Ethernet switch with 2 ports SFP optical fiber uplink, IEEE802.3af/at compliant and equipped with 350W internal power supply source, every single port output max 30W power, all these power transmits through pins 1,2,4,5(+) and pins 3,6,7,8(-) over standard cat 5 least Ethernet cable or higher quality ones such as cat5e, cat6, cat6e, etc., which will ensure the least power lost in the transmission.



    It comes with rack mounting kits that allows it easy to be installed on rack or cabinet, and as a power source equipment, it primarily work with CCTV IP Camera, Wireless Access Point, Voice over Internet Protocol phone, Intelligent Access Control or other PoE compatible Powered Device (PD).



    Key Features

    • 16 port Gigabit POE + 2 port Gigabit SFP Uplink
    • Compliance with IEEE 802.3af/at.
    • Auto MDI/MDIX, Store-and-forward, 52G Bandwidth, 4.1M cache.
    • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
    • Max 30W for a single port, total rated output power 350W.
    • Supports wire speed switch and jumbo frame up to 9KB transmission for all ports.
    • Plug and play, self-adaption, lightning protection, 19’’/1U rack mountable.
    • POE status can be read and analyzed through LED indicators on front panel.
    • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.



    Specification

    Item 16 Port Gigabit unmanaged Power over Ethernet Switch
    Model POE-S0216GB
    Interface 16 GE PoE Output + 2 GE SFP Uplink
    Power Input AC100-240V, 50/60Hz
    Power Output DC48-57V, 350W Built-in Power Supply, Max 30W for every single port
    Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps Store and Forward switching
    Power/Data Assignment Power: pin 1,2/4,5 “+”, pin 3,6/7,8 “-”; Data: pin 1,2,3,6
    Bandwidth/MAC 52Gbps, 8K, 4.1M cache
    Ambient Environment Operating temperature: 0~40℃
    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Standards Protocols

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-T

    IEEE 802.3z 1000Base-x

    IEEE 802.3af/at

    IEEE 802.3x

    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Gigabit Ethernet 2000Mbps full-duplex

    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

    1000Base-SX:62.5μm/50μm MMF(2m~550m)

    1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

    Safety Approved CE, FCC, ROHS
    Warranty 1-3 years
    Size/Weight

    PoE Size: 440*290*45mm (L*W*H)

    Packing Box Size: 497*393*97mm (L*W*H)

    Net Weight: 4.2kg, Gross Weight: 4.4Kg



    Application Diagram

    POE-S0216GB (16GE+2GE SFP) 16 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
