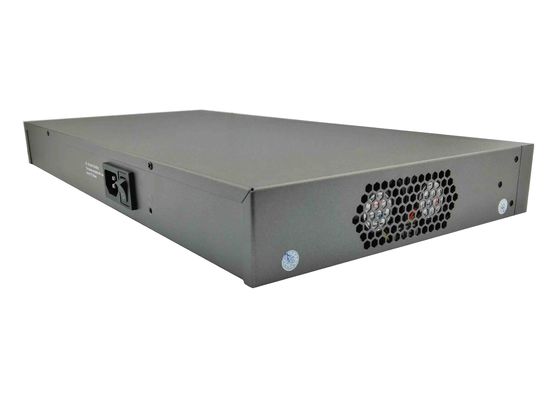

POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)

POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)

    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
    • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
  • POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE,ROHS,FCC
    Model Number: POE-S2224GFB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 units
    Packaging Details: Carton Box
    Delivery Time: 1-30days
    Payment Terms: T/T, L/C, Western Union, Paypal
    Supply Ability: 7580units/month
    Detailed Product Description
    Ports: 24 100Mbps PoE + 2 Gigabit RG45 Uplink + 2 Gigabit SFP Uplink Power Source: 350W Built-in Power Supply
    Ethernet Protocol: IEEE802.3af/at

    POE-S2224GFB (24FE POE + 2GE RJ45 + 2GE SFP, Built-in 350W, 12.8G Bandwidth, IEEE802.3af/at)



    Overview

    POE-S2224GFB, 24 ports Fast Ethernet unmanaged Power over Ethernet switch with 2 port Gigabit RJ45 uplink and 2 ports Gigabit SFP optical fiber uplink, comply with IEEE802.3af/at and equipped with 350W built-in power supply source which make it compatible with most powered device such as CCTV IP Camera, VoIP Phone, Wireless AP/LAN, PDA, Intelligent Access Control and even Intelligent LED lights etc.



    Key Features

    • 24 port 10/100Mbps POE + 2 port Gigabit RJ45 Uplink + 2 port Gigabit SFP Uplink
    • Compliance with IEEE 802.3af/at.
    • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
    • Auto MDI/MDIX, Store-and-forward, 12.8G Bandwidth.
    • Max 30W for a single port, total rated output power 350W.
    • All ports support wire speed switch, jumbo frame transmission.
    • Plug and play, self-adaption, lightning protection, 19’’/1U rack mountable.
    • PoE status can be read and analyzed through LED indicators on front panel.
    • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.



    Specification

    Item 24 Port Fast Ethernet (10/100Mbps) UnmanagedPower over Ethernet Switch
    Model POE-S2224GFB
    Interface 24FE PoE Output + 2GE RJ45 Uplink + 2GE SFP Uplink
    Power Input AC100-240V, 50/60Hz
    Power Output DC48-57V, 350W Built-in Power Supply, Max 30W for every single port
    Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and forward switching
    Power/Data Assignment Power: pin 1,2 ”+”, pin 3,6 “-”; Data: pin 1,2,3,6
    Bandwidth/MAC 12.8Gbps, 8K
    Ambient Environment Operating temperature: 0~40℃
    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Protocol Standard

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-T

    IEEE 802.3z 1000base-x

    IE EE 802.3af/at

    IEEE 802.3x

    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Gigabit Ethernet 2000Mbps full-duplex

    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)

    1000Base-SX:62.5μm/50μm MMF(2m~550m)

    1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

    Safety Approved CE, FCC, ROHS
    Warranty 1-3 years
    Size/Weight

    PoE Size: 440*215*45mm (L*W*H)

    Package Size:497*393*97mm (L*W*H)

    Net Weight: 4.2kg, Gross Weight: 4.5kg



    Application Diagram

    POE-S2224GFB (24FE+2GE+2GE SFP) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
