    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE,ROHS,FCC
    Model Number: POE-S0024GB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 units
    Packaging Details: Carton Box
    Delivery Time: 1-30days
    Payment Terms: T/T, L/C, Western Union, Paypal
    Supply Ability: 8120units/month
    Detailed Product Description
    Ports: 24 Gigabit PoE Power Source: 350W Built-in Power Supply
    Ethernet Protocol: IEEE802.3af/at

    POE-S0024GB (24GE POE, Built-in 350W, 52G Bandwidth, IEEE802.3af/at)



    Overview

    POE-S0024GB, is 24 port universal gigabit unmanaged Power over Ethernet switch, any one or more of these PoE ports can be used as uplink. It’s IEEE802.3af and IEEE802.3at compliant, powered by 350W built-in power supply, average output power will be 15W at least and max 30W, transmit through pins 1,2,4,5(+) and pins 3,6,7,8(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power loss in the transmission.



    There are three kinds of switchable system modes include free communication for all ports, network clone solution, aggregating switching mode. It also comes with rack mounting kits that enables it easy to be installed on rack or cabinet. Finally, it’s applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other PoE compatible PD (Powered Device).



    Key Features

    • 24 port Gigabit POE.
    • Compliance with IEEE 802.3af/at.
    • Auto MDI/MDIX, Store-and-forward, 52G Bandwidth, 4.1M cache.
    • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
    • Max 30W for a single port, total rated output power 350W.
    • Supports wire speed switch and jumbo frame up to 9KB transmission for all ports.
    • Plug and play, self-adaption, lightning protection, 19’’/1U rack mountable.
    • POE status can be read and analyzed through LED indicators on front panel.
    • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.



    Specification

    Item 24 port Gigabit unmanaged Power over Ethernet Switch
    Model POE-S0224GB
    Interface 22 GE PoE + 2 GE RJ45 Uplink
    Power Input AC100-240V, 50/60Hz
    Power Output DC48-57V, 350W Built-in power supply, Max 30W every single port
    Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward Switching
    Power/Data Assignment Power: pin 1,2/4,5 “+”, pin 3,6/7,8 “-”; Data: pin 1,2,3,6
    Bandwidth/MAC 52Gbps, 8K, 4.1M cache
    Ambient Environment Operating temperature: 0~40℃
    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Protocol Standard

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-T

    IEEE 802.3af/at

    IEEE 802.3x

    System Mode Setting M1: Network clone, increase network cloning speed in gigabit network.
    M2: Free communication among all ports, apply to universal data exchange.
    M3: Aggregating switching, work with an uplink port and central device.
    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Gigabit Ethernet 2000Mbps full-duplex

    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)

    Safety Approved CE, FCC, ROHS
    Warranty 1-3 years
    Size/Weight

    Net Weight: 4.4kg, Gross Weight: 4.6kg

    PoE Size: 440*290*45mm (L*W*H)

    Packing Box Size:497*393*97mm (L*W*H)

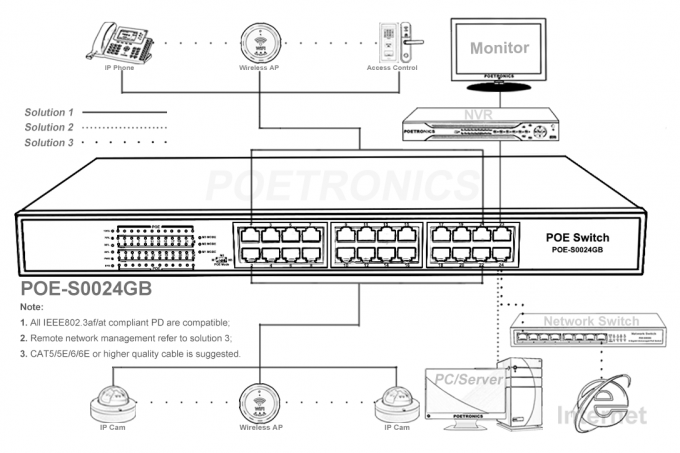

    Application Diagram

    POE-S0024GB (24GE) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
