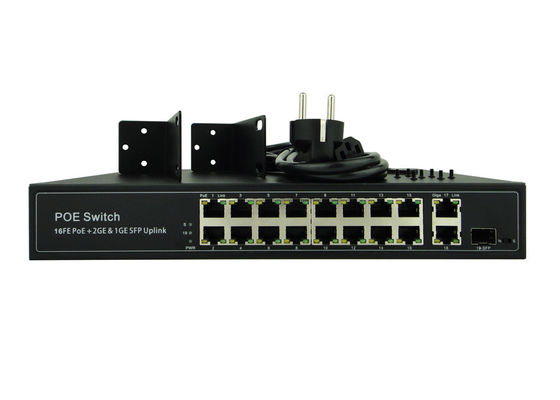

Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)

Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)

    • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
    • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
    • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
    • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
    • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
    • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
  • Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)

    Product Details:

    Place of Origin: CHINA
    Brand Name: POETRONICS
    Certification: CE, FCC, ROHS
    Model Number: POE-S2116GFB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable PoE Price
    Packaging Details: 10pcs/ctn; 50x44.5x58cm, 27.6kgs/ctn (Equipped with EU AC Cable)
    Delivery Time: 1-30days
    Payment Terms: T/T, Western Union, PayPal
    Supply Ability: 325,000/month
    Contact Now
    Detailed Product Description
    Switch Capacity: 20Gbps Ports: 16FE PoE + 2GE Uplink
    Data Rate: POE:10/100Mbps; Uplink: Gigabit Flow Control: Full-Duplex & Half-Duplex
    Function: POE-Power Over Ethernet Products Status: Make-to-Order
    Power Input: AC100-240V; 50~60Hz Power Output: DC 48-57V, 150W/300W (Inbuilt)
    PoE Power: Max. 30W Every Single Port PoE Current: Max. 625mA Every Single Port

    POE-S2116GFB (16FE POE + 2GE Uplink, Built-in 150W/300, 56G, IEEE802.3af/at)



    Overview

    POE-S2116GFB is 16 port 10/100Mbps Power over Ethernet Switch that comes with 2 ports gigabit PoE and 1 port SFP uplink, which enables it to has more uplink options at the same time. It is IEEE802.3af/at compliant, equipped with 150W(300W optional) built-in regulated power supply source.



    It also comes with normal free communication among each PoE ports and super remote transmission (max.250m) two different kinds of operating modes, it’s widely used to IP CCTV, wireless AP, VoIP phone and other compatible device.



    Key Features:

    ◆ 16 10/100Mbps PoE port + 2 10/100/1000Mbps uplink port

    ◆ Compliance with IEEE802.3af/at, support full port advance standard detection

    ◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.

    ◆ Support Auto MDI/MDIX, Store-and-forward switching, 20G bandwidth.

    ◆ Max 30W for every single port, total rated output power 150W/300W.

    ◆ Support wire speed switching and jumbo frame transmission for all ports

    ◆ Plug and play, self-adaption, second-level lightning protection

    ◆ PoE working status can be read and analyzed through LED indicators on front panel

    ◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.



    PoE-S2116GFB Ports & Panel Description

    Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)



    Technical Specs

    Model POE-S2116GFB
    Ports 16 10/100Mbps POE + 2 10/100/1000Mbps Uplink
    Power Input AC 100-240V, 50/60Hz
    Power Output DC 48-57V, 150W/300W(Rated), Max. 30W for every single port
    Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward switching
    Bandwidth/MAC 20G, 4K
    Power/Data Assignment Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
    Ambient Environment

    Operating temperature: 0~40℃

    Storing temperature: -40~70℃
    Operating Humidity: 10%~90% RH, No condensing
    Storing Humidity: 5%~90% RH, No condensing
    Network Protocol

    IEEE 802.3 Ethernet media access control protocol

    IEEE 802.3i 10BASE-T Ethernet

    IEEE 802.3u 100BASE-TX Fast Ethernet

    IEEE 802.3z 1000BASE-X Gigabit Ethernet

    IEEE 802.3af/at Power over Ethernet cable pairs or device

    IEEE 802.3x Flow control

    Data Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Gigabit Ethernet 2000Mbps full-duplex

    Network Medium

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    1000Base-SX:62.5μm/50μm MMF(2m~550m)

    1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

    System Mode

    Standard Free communication;

    250m Supper remote transmission, 3 modes switchable.

    Safety/Certificate CE, FCC, RoHS
    Warranty 1 Year (Implied)
    Size/Weight

    POE Switch Size: 295mm*190mm*45mm (L*W*H)

    Packing Box Size: 410mm*275mm*95mm (L*W*H)

    Net Weight: 2.2/2.4kg, Gross Weight:2.6/2.8kg



    Application Diagram

    Latest POE-S2116GFB 16x100Mbps PoE + 2xGigabit Uplink IEEE802.3af/at PoE Switch (Built-in 150W/300W Power Source)
